Intel® i3-4005U 4 LAN 1 COM WiFi 4G Fanless Firewall Router

As low as £259.99

In stock

SKU
MNHO-036
Customize Intel® i3-4005U 4 LAN 1 COM WiFi 4G Fanless Firewall Router
Intel® i3-4005U 4 LAN 1 COM WiFi 4G Fanless Firewall Router   + £259.99

* Required Fields

Your Customization
Intel® i3-4005U 4 LAN 1 COM WiFi 4G Fanless Firewall Router
Intel® i3-4005U 4 LAN 1 COM WiFi 4G Fanless Firewall Router

In stock

£259.99

Summary

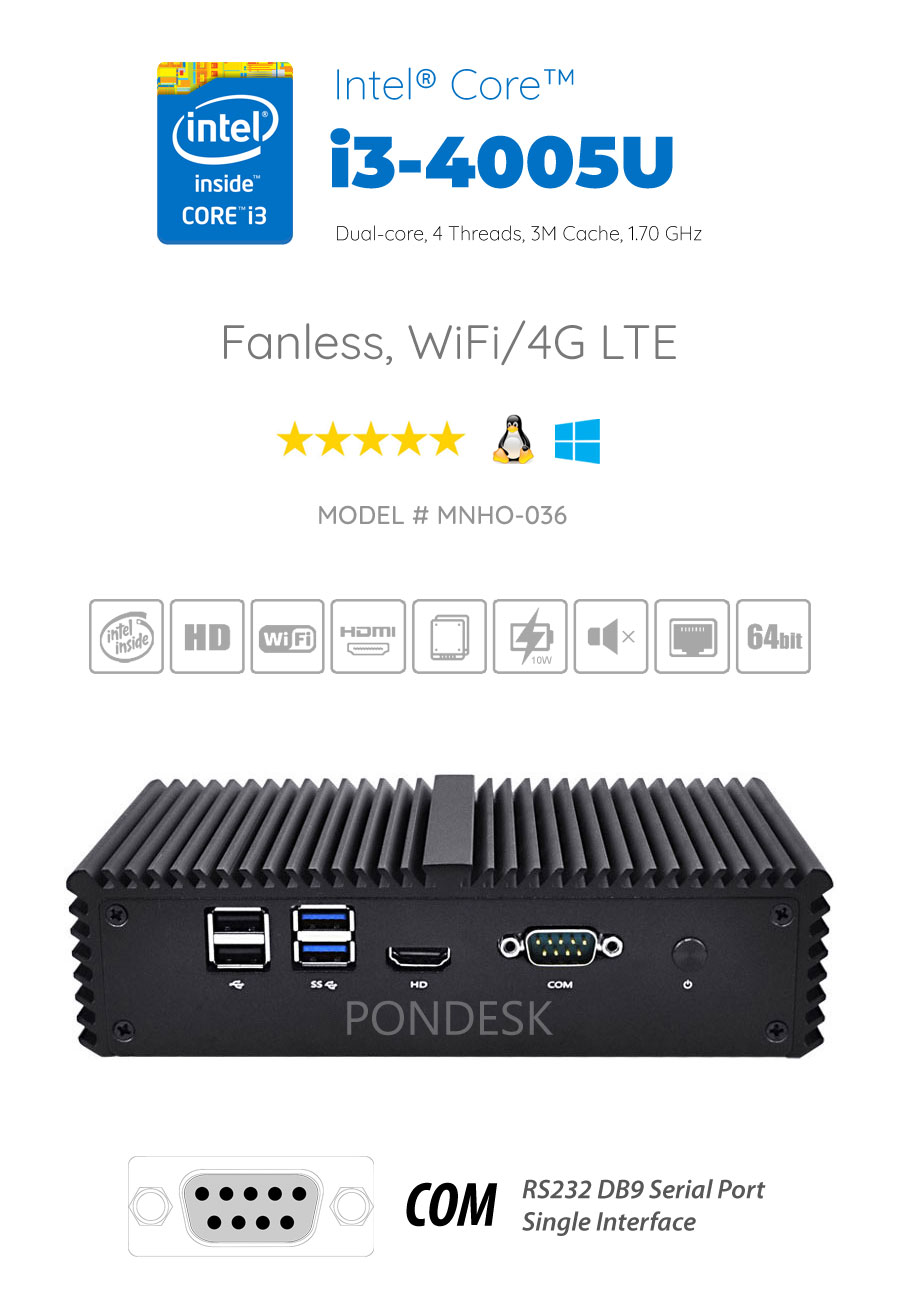

    PONDESK PICO PC 4 LAN fanless firewall router security gateway appliance equipped with the dual-core Intel® Core™ i3-4005U processor up to 1.70 GHz to take on a number of networking and communication tasks. Small network appliance with 4x Intel® I211-AT gigabit Ethernet and DB9 RS-232 COM for high bandwidth and fast communications.

    Support wireless networks 802.11 b/g/n WiFi and WWAN 3G & 4G LTE (optional). Ready for IoT (Internet of Things) by simply connecting using WiFi, 3G/4G LTE via mini PCIe (can use only one network connection at a time). I/O options include four USB2.0 & USB 3.0 ports and an HDMI display port that features Intel® HD Graphics. Compatible with Windows 7/8/10, Linux & Firewalls, etc.

    Support up to 16GB SODIMM DDR3L 1.35V low voltage non-ECC memory and dual storage drives including mSATA SSD and 2.5" SATA SSD/HDD. Highly reliable universal performance and 10W (idle) low power consumption helps users getting a much better computing experience.

    High performance & perfect for VPN, DNS Server, DHCP Server, network bandwidth controller, network servers, LAN or WAN router, firewall, and UTM applications to deliver high throughput, reliable operation and a wide array of network applications, network servers, Linux, Unix, Windows, firewalls (either open-source or commercial) and gateways; pfSense, Sophos, Untangle, Ubuntu, ClearOS, FreeBSD, Monowall, Debian, Endian, Smothwall UTM, OpenBSD, and Zeroshell, etc.

    You can add multiple LAN's or multiple WLAN's to your network, each segmented for maximum security and configurability. It combines a robust industrial-grade performance and the advantages of network security management can be widely used in virtual private networks, traffic control, network firewalls, or other network applications.

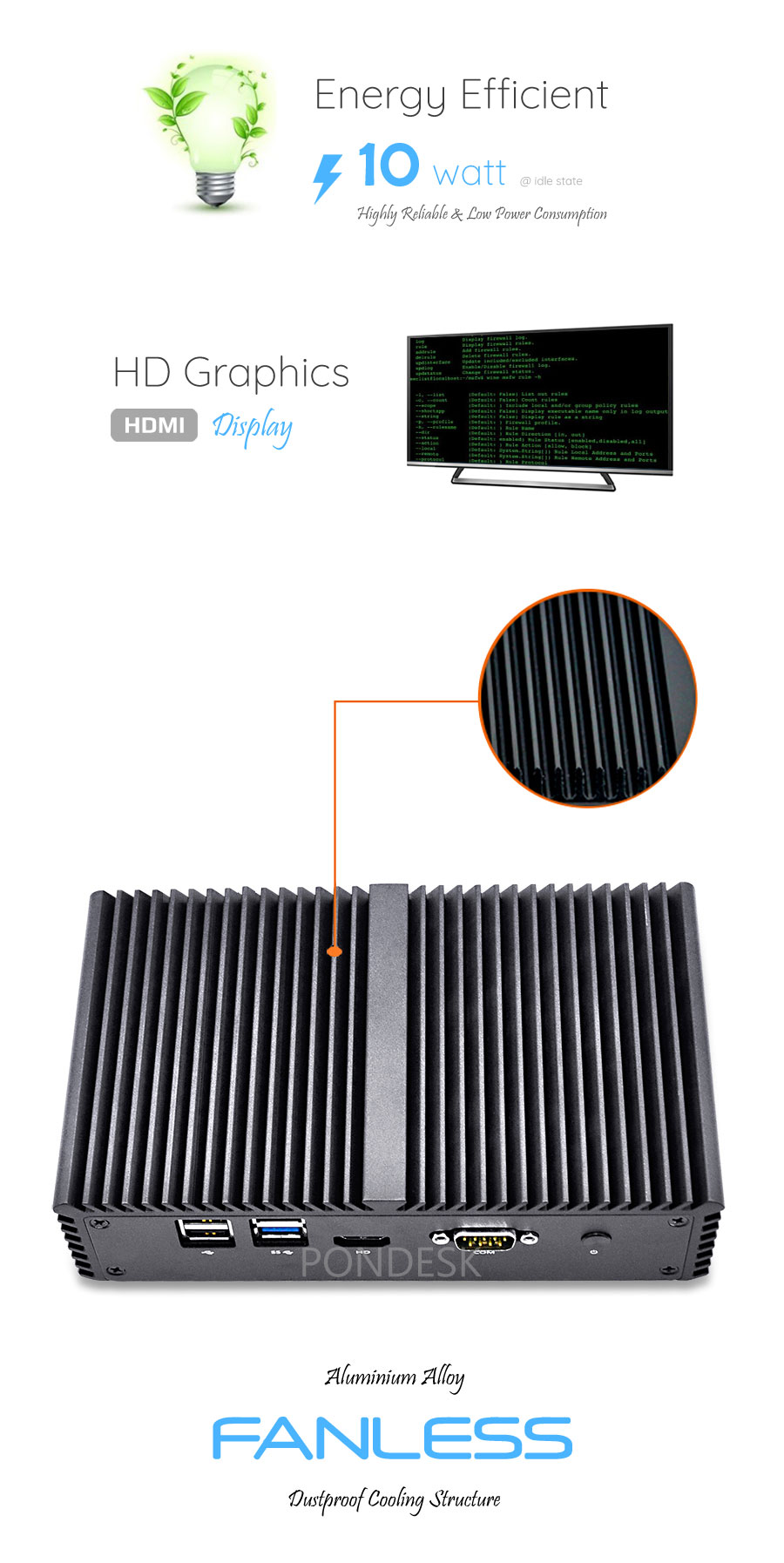

    Completely fanless aluminum alloy compact size durable dustproof structure provides universal performance for small and medium-sized business networks, offices, Internet service providers, MSP/MSSP, etc.

    Features:
    Small Security Gateway, Firewall Router, Mini Server
    Intel® Core™ i3-4005U Dual-Core Processor
    4 Threads, 3 MB Intel® Smart Cache, up to 1.70 GHz
    Four Intel I211-AT Gigabit Ethernet
    DB9 RS-232 COM
    Support WiFi, 3G/4G WWAN Networks (optional)
    Support up to 16GB DDR3L Memory
    Support Dual Storage (mSATA SSD & 2.5" SATA SSD/HDD)
    HDMI Display
    Intel® HD Graphics
    USB 2.0, USB3.0
    Mic-in & Line-out Audio Support
    Aluminium Alloy Dustproof Fanless
    Energy Efficient 10W (idle) Low Power Consumption
    Ready for IoT - Using 3G/4G LTE via Mini PCIe
    Easy Installation & VESA Mounting Capabilities
    Support Windows/Linux/Unix/Firewalls etc.
    Can be configured as a Firewall, LAN/WAN Router, VPN, DNS Server, DHCP Server

    Perfect for Security Gateway, Server, VPN, and Firewalls such as pfSense, Untangle, Sophos, Smoothwall, ClearOS, m0n0wall, etc.



    Specifications:

    System

    Brand

    PICO PC

    Model

    MNHO-036

    Part Number (P/N)

    MO36I305UND4L1C

    Processor

    CPU

    Intel® Core™ i3-4005U

    Processor Base Frequency

    1.7 GHz

    TDP

    15W

    # of Cores

    2

    # of Threads

    4

    Cache

    3 MB Intel® Smart Cache

    Memory

    Size

    Support up to 16GB (optional)

    Type

    SODIMM DDR3L-1600MHz 1.35V Low Voltage Memory

    Slot

    1

    Storage

    SSD

    Support 1 x mSATA SSD (optional)

    HDD

    Support 1 x 2.5" SATA SSD/HDD (optional)

    Graphics

    Processor Graphics

    Intel HD Graphics

    Intel® Quick Sync Video

    Yes

    Intel® InTru™ 3D Technology

    Yes

    Intel® Clear Video HD Technology

    Yes

    CPU Advanced Technologies

    Intel® Hyper-Threading Technology

    Yes

    Intel® Virtualization Technology (VT-x)

    Yes

    Intel® VT-x with Extended Page Tables (EPT)

    Yes

    Enhanced Intel SpeedStep® Technology

    Yes

    Thermal Monitoring Technologies

    Yes

    Intel® Identity Protection Technology

    Yes

    Intel® Smart Connect Technology

    Yes

    I/O Specifications

    Display

    1 x HDMI

    Serial Port

    1 x RS-232 (COM)

    USB

    2 x USB 2.0, 2 x USB 3.0

    LAN

    4 x Intel I211-AT Gigabit Ethernet

    WiFi

    802.11 b/g/n (Optional)

    3G/4G

    Optional

    Audio

    Realtek ALC662 6-Channel HD Audio

    Power

    System Input

    DC 12V

    Power Consumption

    12W~20W Approx.

    Power Type

    External Power Adapter

    Input: AC 100-240V ~ 50-60Hz

    Output: 12V 5A

    Mechanical and Environmental

    Cooling

    Completely Fanless, NO Noise

    Chassis

    Aluminum Alloy, Dustproof

    Working Temperature

    -10°C ~ 30°C

    StorageTemperature

    -20°C ~ 70°C

    Humidity

    10 ~ 85% Relative Humidity

    OS Support

    Windows

    Support

    Linux

    Support

    Others

    Size

    18.7 x 11.1 x 5 cm

    Package

    1 x Industrial PC 1 x Power Adapter, 1 x Cord

    Intel® i3-4005U 4 LAN 1 COM WiFi 4G Fanless Firewall Router - MNHO-036 | ImageIntel® i3-4005U 4 LAN 1 COM WiFi 4G Fanless Firewall Router - MNHO-036 | ImageIntel® i3-4005U 4 LAN 1 COM WiFi 4G Fanless Firewall Router - MNHO-036 | ImageIntel® i3-4005U 4 LAN 1 COM WiFi 4G Fanless Firewall Router - MNHO-036 | Image
