Intel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server

As low as £269.99

In stock

SKU
MNHO-068
Customize Intel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server
Intel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server   + £269.99

* Required Fields

Your Customization
Intel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server
Intel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server

In stock

£269.99

Summary

    The PONDESK mini server equipped with Intel® Celeron® J1900 quad-core processor up to 2.42GHz. Small network appliance with 4x Intel® 82574L gigabit Ethernet for high bandwidth and fast communications. A complete network hub as a VPN, equipped with RJ45-DB9 COM (Cisco Standard) and to take on a number of networking and communication tasks and can be used as a security gateway to act as a virtual private network and firewall. Support network wake-up/PXE function, watchdog hardware reset function (L256, 0~255 seconds).



    The mini server supports up to 8GB SODIMM DDR3L memory and dual storage drives including one mSATA SSD and one 2.5" SATA SSD/HDD storage. Supports wireless networks 802.11 b/g/n Wi-Fi and 3G/4G LTE WWAN via mini PCIe express slot (support one network WiFi/4G at a time). I/O options include two USB 2.0 ports and a VGA display port that features Intel® HD Graphics. Reliable universal performance and 10W (idle) low power consumption helps users getting a much better computing experience.



    Suitable for VPN, DNS Server, DHCP Server, network bandwidth controller, firewall and UTM applications to deliver high throughput, reliable operation, high performance and a wide array of network applications, network servers, Linux, Unix, Windows, firewall (either open-source or commercial) and gateways; Mikrotik, pfSense, Sophos, Untangle, Ubuntu, ClearOS, FreeBSD, Monowall, Debian, Endian, Smothwall UTM, OpenBSD, Zeroshell, Zentyal, OpenWRT, Kerio Control and VyOS, etc.



    You can add multiple LAN's or multiple WLAN's to your network, each segmented for maximum security and configurability. It combines a robust industrial-grade performance and the advantages of network security management can be widely used in virtual private networks, traffic control, network firewalls, or other network applications.



    Features:

    Small Security Gateway, Firewall Router, Mini Server

    Intel® Celeron® J1900 Quad-Core Processor

    4 Threads, 2M Cache, up to 2.42 GHz

    Four Intel 82574L Gigabit Ethernet

    Support Network wake-up/PXE

    RJ45-DB9 COM (Cisco Standard)

    Support WiFi, 3G/4G WWAN Networks (optional)

    Watchdog (L256, 0~255 seconds)

    Support up to 8GB DDR3L Memory

    Support Dual Storage (mSATA SSD & 2.5" SATA SSD/HDD)

    VGA Display, USB 2.0

    Intel® HD Graphics

    Energy Efficient 10W (idle) Low Power Consumption

    Ready for IoT - Simply Connected Using 3G/4G LTE via Mini PCIe

    Support Windows/Linux/Unix/MikroTik/Firewalls etc.

    Can be configured as a Firewall, LAN/WAN Router, VPN, DNS Server, DHCP Server

    Perfect for Security Gateway, Server, VPN, and Firewall such as pfSense, Untangle, Sophos, Smoothwall, ClearOS, m0n0wall, etc.



    Specifications:

    System

    Brand

    PICO PC

    Model

    MNHO-068

    Part Number (P/N)

    MO68J19ND4L1C

    Processor

    CPU

    Intel® Celeron® J1900

    Processor Base Frequency

    2.0 GHz

    Burst Frequency

    2.42 GHz

    TDP

    10W

    Instruction Set

    64 bit

    # of Cores

    4

    # of Threads

    4

    Cache

    2 MB L2

    Memory

    Size

    Support up to 8GB (optional)

    Type

    SODIMM DDR3L 1.35V Low Voltage (Single-Sided) Memory

    Channels

    1

    Storage

    mSATA

    Support 1 x mSATA SSD (optional)

    2.5" SATA

    Support 1 x 2.5" SATA SSD/HDD (optional)

    Graphics

    Processor Graphics

    Intel HD Graphics

    Graphics Base Frequency

    688 MHz

    Graphics Max Dynamic Frequency

    854 GHz

    Intel® Quick Sync Video

    Yes

    Advanced Technologies

    Intel® Virtualization Technology (VT-x)

    Yes

    Intel® 64

    Yes

    Enhanced Intel SpeedStep® Technology

    Yes

    I/O

    Display

    1 x VGA

    USB

    2 x USB 2.0

    LAN

    4 x Intel 82574L Gigabit Ethernet

    Supports Wake on LAN/PXE

    COM

    1 x RJ45-DB9 COM (Cisco Standard)

    WiFi

    802.11 b/g/n 150mbps (optional)

    3G/4G

    Optional

    Power Adapter

    Input

    AC 100-240V ~ 50-60Hz

    Output

    DC 12V 5A

    Safety & EMC

    UL, CE, FCC, RoHS

    EMC EN55022 CLASS B

    IEC 60950-1

    Energy-saving standards

    Energy Star Ver. 2.0

    DOE Level VI

    ErP CoC Version 5 Tier 2

    OS

    Windows

    Support Windows 7, 8, 10, etc. (not included)

    Linux

    Support

    Firewalls

    Support pfSense, Untangle, Debian, Sophos, etc. (not included)

    Compliance

    Approvals

    CE

    Regulatory

    IEC 60950, EMC Emission EN 55032, EN 61000, EN 55024

    Others

    BIOS

    BIOS AMI 64Mb Flash ROM

    Watchdog

    Support Hardware Reset Function (L256, 0~255 seconds)

    System Input

    DC 12V

    Consumption

    10W~15W

    Cooling

    Fanless Motherboard, Two System FAN

    Operating Temperature

    -10°C ~ 55°C

    Storage Temperature

    -20°C ~ 70°C

    Humidity

    5% - 95% Non-Condensing

    Vibration

    0.5g rms/5-500HZ/random/operating

    Size

    197 x 174 x 35 mm

    Package

    1 x Mini SERVER, 1 x Power Adopter, 1 x Cord

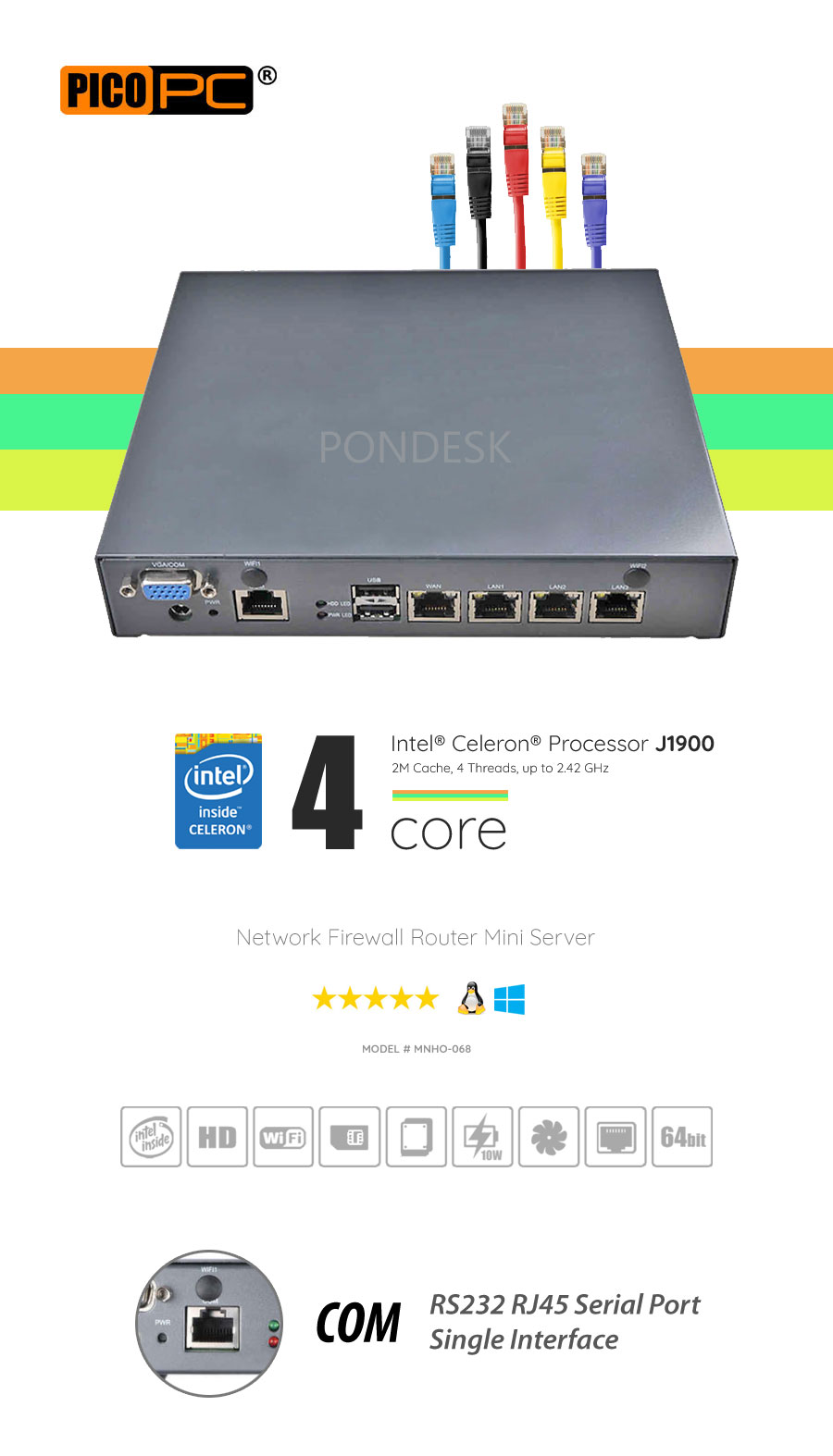

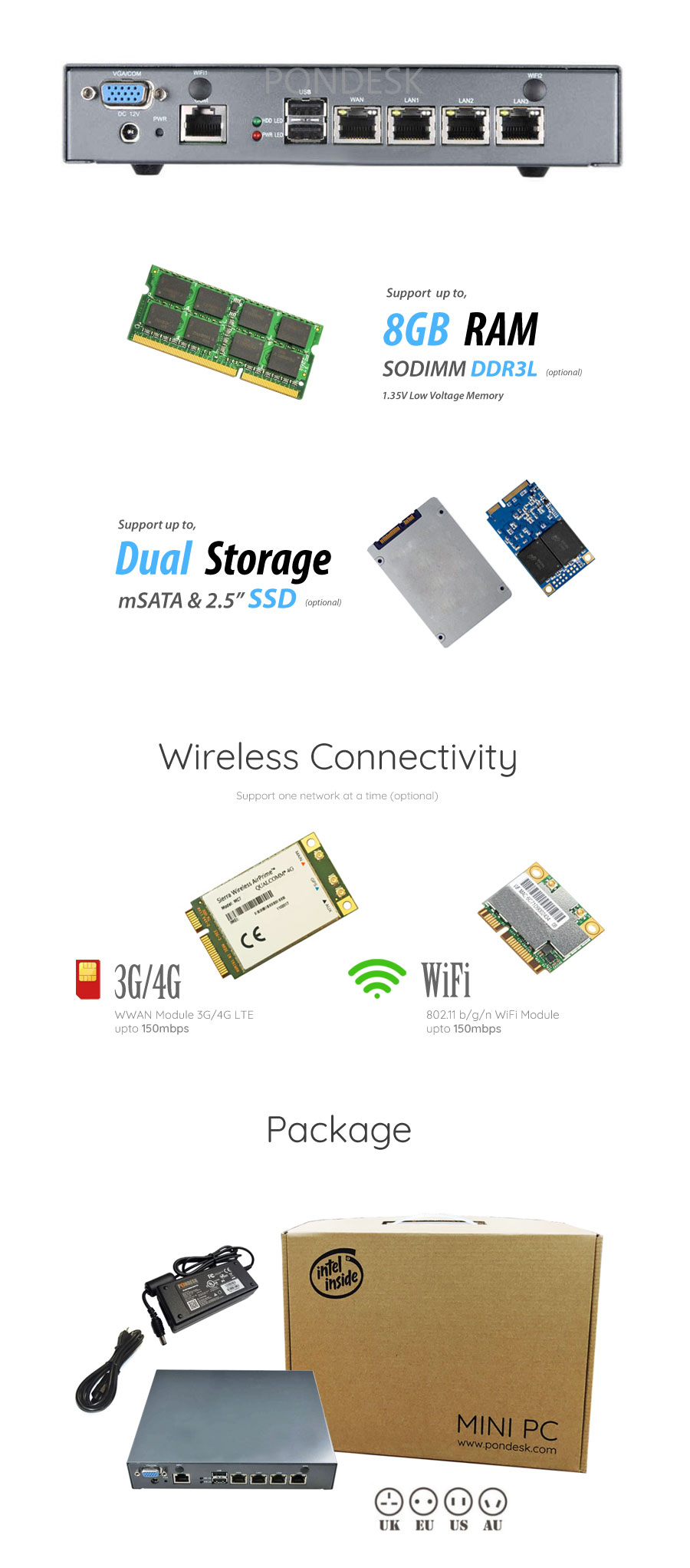

    Intel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server - MNHO-068 | Image



    Intel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server - MNHO-068 | ImageIntel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server - MNHO-068 | ImageIntel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server - MNHO-068 | Image
    More Information
    Item Returns This item can be returned
    Write Your Own Review
    You're reviewing:Intel® J1900 4 LAN 1 COM WiFi 4G Firewall Router Mini Server

    This section describes the real-world performance of the PONDESK 4 LAN Network Firewall Router NGFW Mini Server with respect to different firewalls showing details below. This will outline the technical specification & configurations required by a firewall administrator to operate and troubleshoot the hardware/software properly.



    pfSense Hardware Performance

    Below mentioned are few real-world stress tests performed with pfSense as firewall OS on standard network firewall router box hardware with the following configuration.

    CPU: Intel® Celeron® J1900 (2M Cache, up to 2.42 GHz)
    RAM: 8GB
    Storage: 16GB mSATA SSD


    ** These are not theoretical stats, these are real-world stats, means generated at the time of full system load. You can consider them a minimum level of the number. You will get more than that in your environment


    Note: Server ports are capable of handling more than 95% of the hardware limit, like 950-980 Mbps per port.

    Untangle Hardware Performance

    Below mentioned are few real-world stress tests performed with Untangle as firewall OS on standard network firewall router box hardware with the following configuration.

    CPU: Intel® Celeron® J1900 (2M Cache, up to 2.42 GHz)
    RAM: 8GB
    Storage: 16GB mSATA SSD


    ** These are not theoretical stats, these are real-world stats, means generated at the time of full system load. You can consider them a minimum level of the number. You will get more than that in your environment


    Note: Server ports are capable of handling more than 95% of the hardware limit, like 950-980 Mbps per port.

    Sophos Hardware Performance

    Below mentioned are few real-world stress tests performed with Sophos as firewall OS on standard network firewall router box hardware with the following configuration.

    CPU: Intel® Celeron® J1900 (2M Cache, up to 2.42 GHz)
    RAM: 8GB
    Storage: 16GB mSATA SSD


    ** These are not theoretical stats, these are real-world stats, means generated at the time of full system load. You can consider them a minimum level of the number. You will get more than that in your environment


    Note: Server ports are capable of handling more than 95% of the hardware limit, like 950-980 Mbps per port.



    Note: Remember that this is a real-time status captured during an ideal environment. These might be different according to traffic load, the complexity of configuration, CPU/RAM/SSD specifications. Most important OS, if OS is more stable and has a smaller footprint then performance should be high.
