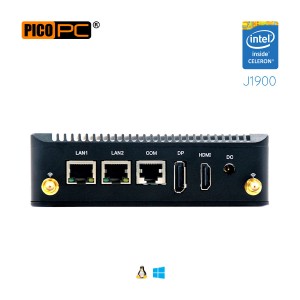

Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router

As low as £199.99

In stock

SKU
MNHO-043
Customize Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router
Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router   + £199.99

* Required Fields

Your Customization
Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router
Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router

In stock

£199.99

Summary

    PONDESK PICO PC 4 LAN fanless firewall router security gateway appliance equipped with the quad-core Intel® Celeron® J1900 processor up to 2.42 GHz to take on a number of networking and communication tasks. Small network appliance with 4x Intel® I211-AT gigabit Ethernet for high bandwidth and fast communications.



    Support wireless networks 802.11 b/g/n WiFi and WWAN 3G & 4G LTE (optional). Ready for IoT (Internet of Things) by simply connecting using WiFi, 3G/4G LTE via mini PCIe (can use only one network connection at a time). I/O options include two USB2.0 & USB 3.0 ports and VGA & HDMI dual display ports feature Intel® HD Graphics. Compatible with Windows 7/8/10, Windows Server, Linux & Firewalls, etc.



    Support up to 8GB SODIMM DDR3L 1.35V low voltage non-ECC memory and dual storage drives including mSATA SSD and 2.5" SATA SSD/HDD. Highly reliable universal performance and 10W (idle) low power consumption helps users getting a much better computing experience.



    High performance & perfect for VPN, DNS Server, DHCP Server, network bandwidth controller, network servers, LAN or WAN router, firewall, and UTM applications to deliver high throughput, reliable operation and a wide array of network applications, network servers, Linux, Unix, Windows, firewalls (either open-source or commercial) and gateways; pfSense, Sophos, Untangle, Ubuntu, ClearOS, FreeBSD, Monowall, Debian, Smothwall UTM, OpenBSD, Zeroshell, Zentyal, OpenWRT and VyOS, etc.



    You can add multiple LAN's or multiple WLAN's to your network, each segmented for maximum security and configurability. It combines a robust industrial-grade performance and the advantages of network security management can be widely used in virtual private networks, traffic control, network firewalls, or other network applications.



    Completely fanless aluminum alloy compact size durable dustproof structure provides universal performance for small and medium-sized business networks, offices, Internet service providers, MSP/MSSP, etc.



    Features:

    Small Security Gateway, Firewall Router, Mini Server

    Intel Celeron® J1900 Quad-Core Processor

    4 Threads, 2M Cache, up to 2.42 GHz

    Four Intel I211-AT Gigabit Ethernet

    Support WiFi, 3G/4G WWAN Networks (optional)

    Support up to 8GB DDR3L Memory

    Support Dual Storage (mSATA SSD & 2.5" SATA SSD/HDD)

    VGA & HDMI Dual Display

    Intel® HD Graphics

    USB 2.0, USB3.0

    Aluminium Alloy Dustproof Fanless

    Energy Efficient 10W (idle) Low Power Consumption

    Ready for IoT - Using 3G/4G LTE via Mini PCIe

    Easy Installation & VESA Mounting Capabilities

    Support Windows/Linux/Unix/Firewalls etc.

    Can be configured as a Firewall, LAN/WAN Router, VPN, DNS Server, DHCP Server

    Perfect for Security Gateway, Server, VPN, and Firewall such as pfSense, Untangle, Sophos, Smoothwall, ClearOS, m0n0wall, etc.



    Specification:

    System

    Brand

    PICO PC

    Model

    MNHO-043

    Part Number (P/N)

    MO43J19ND4L

    Processor

    CPU

    Intel® Celeron® Processor J1900

    Processor Base Frequency

    2.0 GHz

    Burst Frequency

    2.42 GHz

    TDP

    10W

    Instruction Set

    64 bit

    # of Cores

    4

    # of Threads

    4

    Cache

    2 MB L2

    Memory

    Size

    Support up to 8GB (optional)

    Type

    SODIMM DDR3L 1.35V Low Voltage (non-ECC)

    Slot

    1

    Storage

    mSATA

    Support mSATA SSD (optional)

    2.5" SATA

    Support 2.5" SATA SSD/HDD 7mm (optional)

    Graphics

    Processor Graphics

    Intel HD Graphics

    Graphics Base Frequency

    688 MHz

    Graphics Max Dynamic Frequency

    854 MHz

    Intel® Quick Sync Video

    Yes

    Advanced Technologies

    Intel® Virtualization Technology (VT-x)

    Yes

    Intel® 64

    Yes

    Enhanced Intel SpeedStep® Technology

    Yes

    I/O Specifications

    Display

    1 x HDMI, 1 x VGA

    USB

    1 x USB 2.0, 1 x USB 3.0

    LAN

    4 x Intel I211-AT Gigabit Ethernet

    802.11 b/g/n WiFi (PCIe Module)

    Optional

    3G/4G (PCIe Module)

    Optional

    Reset Switch

    Yes

    Expansion Slots

    mSATA

    Yes (For mSATA SSD)

    mini PCIe

    Yes (For WiFi/WWAN module)

    SIM

    Yes (6pin SIM Interface)

    Power Adapter

    Input

    AC 100-240V ~ 50-60Hz

    Output

    DC 12V 5A

    Safety & EMC

    UL, CE, FCC, RoHS

    EMC EN55022 CLASS B

    IEC 60950-1

    Energy-saving standards

    Energy Star Ver. 2.0

    DOE Level VI

    ErP CoC Version 5 Tier 2

    OS

    Windows

    Support Windows 7, 8, 10 & Windows Server (not included)

    Linux

    Support

    Firewalls

    Support pfSense, Untangle, Debian, Sophos, etc. (not included)

    Compliance

    Approvals

    CE, FCC, RoHS

    Regulatory

    EMC Emission EN55022

    Others

    System Input

    DC 12V

    Consumption

    10W ~ 15W  (approx.)

    Cooling

    Fanless

    Chassis

    Brushed Aluminum Alloy (Rugged surface)

    Mounting

    VESA Mount

    Working Temperature

    -10°C ~ 50°C

    Size

    126 x 134 x 40.6 mm

    Package

    1 x Mini PC, 1 x Power Adopter, 1 x Power Cord, 1 x VESA mount



    Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router - MNHO-043 | Image


    Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router - MNHO-043 | Image
    Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router - MNHO-043 | Image

    Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router - MNHO-043 | Image
    Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router - MNHO-043 | ImageIntel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router - MNHO-043 | Image


    RELATED PRODUCTS

    More Information
    Item Returns This item can be returned
    Write Your Own Review
    You're reviewing:Intel J1900 4 LAN HD Dual Display 4G Fanless Firewall Router

    pfSense Hardware Performance

    Below mentioned are few real-world stress tests performed with pfSense as firewall OS on standard network firewall router box hardware with the following configuration.

    CPU: Intel® Celeron® J1900 (2M Cache, up to 2.42 GHz)
    RAM: 8GB
    Storage: 16GB mSATA SSD

    ** These are not theoretical stats, these are real-world stats, means generated at the time of full system load. You can consider them a minimum level of the number. You will get more than that in your environment

    This section describes the real-world performance of the PONDESK J1900 4 LAN Firewall Router with respect to different firewalls showing details below. This will outline the technical specification & configurations required by a firewall administrator to operate and troubleshoot the hardware/software properly.

    Untangle Hardware Performance

    Below mentioned are few real-world stress tests performed with Untangle as firewall OS on standard network firewall router box hardware with the following configuration.

    CPU: Intel® Celeron® J1900 (2M Cache, up to 2.42 GHz)
    RAM: 8GB
    Storage: 16GB mSATA SSD


    ** These are not theoretical stats, these are real-world stats, means generated at the time of full system load. You can consider them a minimum level of the number. You will get more than that in your environment

    Sophos Hardware Performance

    Below mentioned are few real-world stress tests performed with Sophos as firewall OS on standard network firewall router box hardware with the following configuration.

    CPU: Intel® Celeron® J1900 (2M Cache, up to 2.42 GHz)
    RAM: 8GB
    Storage: 16GB mSATA SSD


    ** These are not theoretical stats, these are real-world stats, means generated at the time of full system load. You can consider them a minimum level of the number. You will get more than that in your environment



    Note: Remember that this is real time status captured during ideal environment. These might be different according to traffic load, complexity of configuration, CPU/RAM/SSD specifications. Most important OS, if OS is more stable and have smaller footprint then performance should be high.



    Disclaimer: The subject matter of this section causes the disclosure of Winston Marriot Ltd confidential and/or proprietary information. We reserves the right to change the contents of this section at any time and without prior notice. No part of this section may be reproduced, stored, copied or transmitted in any form or any storage medium by any means, electronic, photocopying, recording or otherwise, without the prior written permission of Winston Marriot Ltd.
